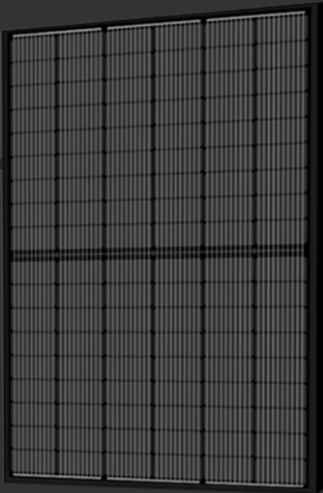

The Jinko Solar 405 watt monocrystalline XL module is the best in terms of power output and long-term reliability at an attractive low price. The Jinko Solar module features 144 half-cell monocrystalline solar cell design delivering high power in a small footprint. This Jinko solar panel is designed for improved shade tolerance allowing for continued performance even with shading by trees or debris. The JKM405M-72HL-V premium solar panel operates at 20.13% efficiency to maximize the light absorption area. This solar panel is recommended for residential and commercial installations.
Make your own power with this low priced solar panel. Rigorous quality control and 3rd party testing labs guarantee Jinko solar panels provide top performance. UL Certified, CEC approved, and backed by a 25-year manufacturer’s warranty gives peace of mind. Min Order 10 modules.
|
MANUFACTURER:
|
Jinko Solar
|
|
PRODUCT LINE:
|
EAGLE 72HM G2
|
|
MODEL:
|
JKM405M-72HL-V
|
|
COUNTRY OF ORIGIN:
|
USA & Malaysia
|
|
MAXIMUM POWER STC:
|
405 watts DC
|
|
MAXIMUM POWER PTC:
|
374.0 watts DC
|
|
NOMINAL POWER NOCT:
|
298 watts DC
|
|
MODULE EFFICIENCY:
|
20.13%
|
|
MAXIMUM POWER VOLTAGE VMP (V):
|
40.42 Volts
|
|
MAXIMUM POWER CURRENT IMP (A):
|
10.02 Amps
|
|
OPEN CIRCUIT VOLTAGE VOC (V):
|
49.4 Volts
|
|
SHORT CIRCUIT CURRENT ISC (A):
|
10.69 Amps
|
|
MAXIMUM SYSTEM VOLTAGE:
|
1500 VDC
|
|
MAXIMUM SERIES FUSE RATING:
|
20 A
|
|
CELLS PER MODULE:
|
144 half-cut cells
|
|
CELL TYPE:
|
Monocrystalline PERC Diamond Cell (158.75×158.75mm)
|
|
FRAME:
|
Anodized Aluminum Alloy
|
|
BACKSHEET:
|
Backsheet
|
|
FRONTSIDE:
|
3.2mm, High Transmission, AR Coated Tempered Glass
|
|
DIMENSIONS:
|
2008×1002×40mm (79.06×39.45×1.57in)
|
|
WEIGHT:
|
22.5kg (49.6 lbs)
|
|
CONNECTOR TYPE:
|
MC4
|
|
JUNCTION BOX:
|
IP67 Rated, 3 diodes
|
|
FRONT LOAD (SNOW) TEST:
|
5400 Pa
|
|
BACK LOAD (WIND) TEST:
|
2400 Pa
|
|
HAILSTONE IMPACT TEST:
|
1 inch hail at 23M/s from 1m distance
|
|
MODULES PER PALLET:
|
27
|
|
PALLET WEIGHT:
|
N/A
|
|
FIRE SAFETY CLASSIFICATION:
|
Type 1 (UL 1703)
|
|
CERTIFICATIONS:
|
UL1703, CEC, IEC61215, IEC61730
|
|
PRODUCT WARRANTY:
|
10-year material and workmanship
|
|
PERFORMANCE WARRANTY:
|
25-year performance guarantee
|
|
DISCLAIMER:
|
Product specifications are dependant on manufacturer information and are subject to change without notice.
|
