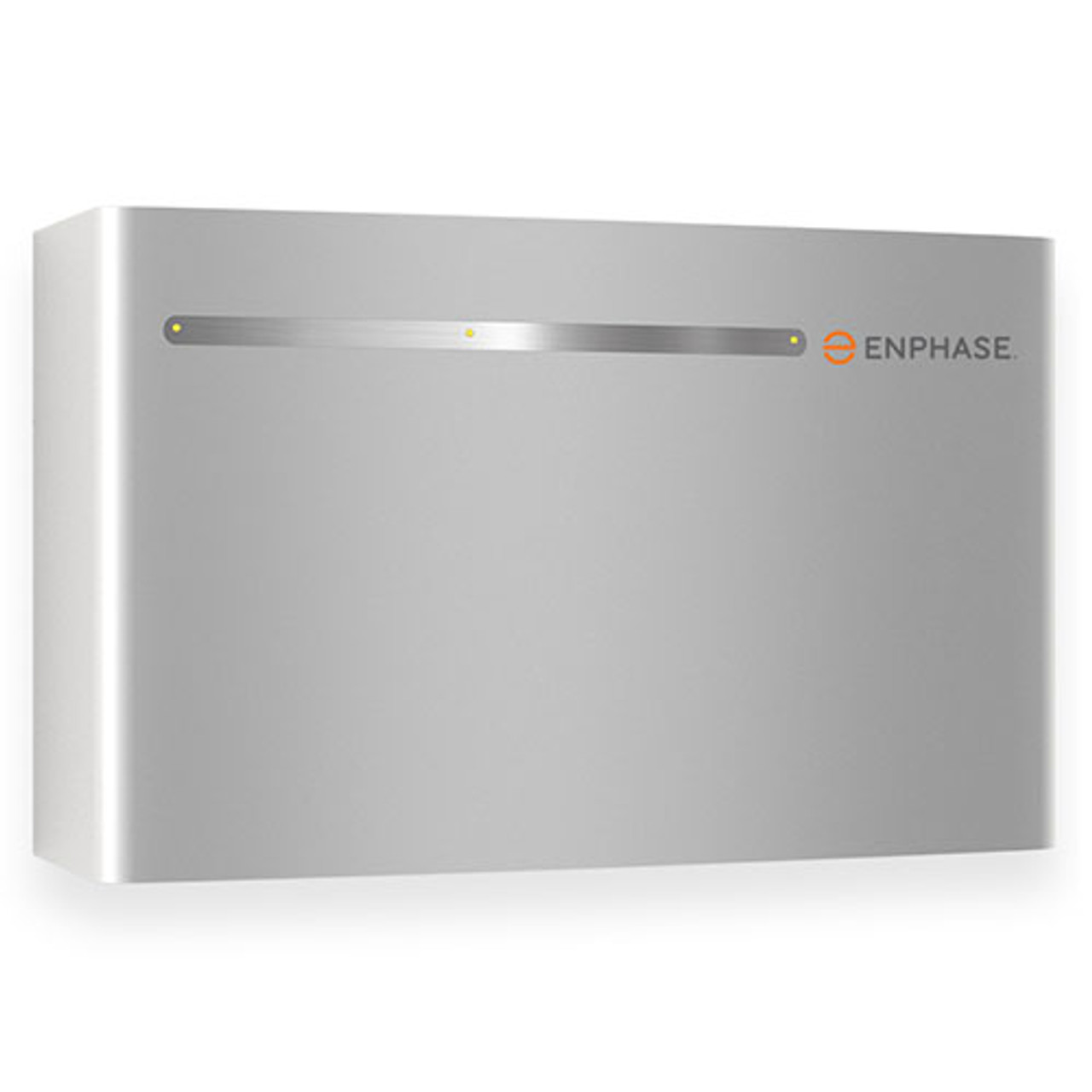

The Enphase Encharge 10T is an all-in-one AC-coupled 10.5 kWh battery storage system with integrated Enphase IQ8 Microinverters and battery management unit (BMU) that is reliable, smart, and safe. As a fully integrated AC battery system, the Enphase Encharge 10 provides the lowest lifetime energy costs with backup capability for both new and retrofit solar customers.
The Enphase Encharge 10T battery storage system is comprised of three Encharge 3.36 kWh base storage units (B10-A01-US00-1-3) to provide a total usable energy capacity of 10kWh, twelve embedded IQ 8X-BAT microinverters, one Encharge 10T cover kit with cover, wall mounting bracket, watertight conduit hubs, and interconnect kit for wiring between batteries. Multiple Encharge 10 Storage Systems can be connected to maximize backup potential for whole home backup. Monitor and control your Enphase Encharge system from anywhere with the mobile app. Limited Warranty: >70% capacity, up to 10 years or 4000 cycles.
|
MANUFACTURER:
|
Enphase
|
|
MODEL NUMBER:
|
ENCHARGE-10T-1P-NA
|
|
INCLUDES:
|
Three Encharge 3.36kWh base units; 12 integrated IQ8-BATT inverters; One Encharge 10 cover kit with cover, mounting bracket, and watertight conduit hubs (B10-C-1050-O); Interconnect kit for wiring between batteries
|
|
ACCESSORIES:
|
Connection cable (B10-W-AWG08-0700-O)
|
|
OUTPUT (AC) @ 240 VAC:
|
OUTPUT
|
|
RATED (CONTINUOUS) OUTPUT POWER:
|
3.84 kVA
|
|
PEAK OUTPUT POWER:
|
5.7 kVA (10 seconds)
|
|
NOMINAL VOLTAGE / RANGE:
|
240 / 211 — 264 VAC
|
|
NOMINAL FREQUENCY / RANGE:
|
60 / 57 — 61 Hz
|
|
RATED OUTPUT CURRENT:
|
16 A
|
|
PEAK OUTPUT CURRENT:
|
24.6 A for 10 seconds
|
|
POWER FACTOR (ADJUSTABLE):
|
0.85 leading; 0.85 lagging
|
|
MAXIMUM UNITS PER 20 A BRANCH CIRCUIT:
|
1 unit (single phase)
|
|
INTERCONNECTION:
|
Single-phase
|
|
SINGLE-PHASE:
|
89%
|
|
BATTERY:
|
BATTERY
|
|
TOTAL CAPACITY:
|
10.5 kWh
|
|
USABLE CAPACITY:
|
10.08 kWh
|
|
ROUND TRIP EFFICIENCY:
|
89%
|
|
NOMINAL DC VOLTAGE:
|
67.2 V
|
|
MAXIMUM DC VOLTAGE:
|
75.6 V
|
|
CHEMISTRY:
|
Lithium iron phosphate (LFP)
|
|
MECHANICAL DATA:
|
MECHANICAL DATA
|
|
DIMENSIONS (W X H X D):
|
50.5 x 30.5 x 7.4 in
|
|
WEIGHT:
|
317 lbs (three individual 89.3 lbs base units plus 48.7 lbs cover & mounting bracket
|
|
ENCLOSURE:
|
Outdoor – NEMA 3R
|
|
COOLING:
|
Natural convection – No fans
|
|
ALTITUDE:
|
Up to 8200 feet; 2500 meters
|
|
MOUNTING:
|
Wall mount
|
|
FEATURES AND COMPLIANCE:
|
FEATURES & COMPLIANCE
|
|
COMPATIBILITY:
|
Compatible with grid-tied PV systems. Compatible with Enphase IQ Series Micros, Enphase Enpower, and Enphase IQ Envoy for backup operation.
|
|
COMMUNICATION:
|
Wireless 2.4 GHz and 915 MHz
|
|
SERVICES:
|
Backup, self-consumption, TOU, Demand Charge, NEM Integrity
|
|
MONITORING:
|
Enlighten Manager and MyEnlighten monitoring options; API integration
|
|
COMPLIANCE:
|
This product will comply with all the required regulatory certifications in the North American markets before launch. Details will be provided in the final data sheet.
|
|
LIMITED WARRANTY:
|
>70% capacity, up to 10 years or 4000 cycles
|
