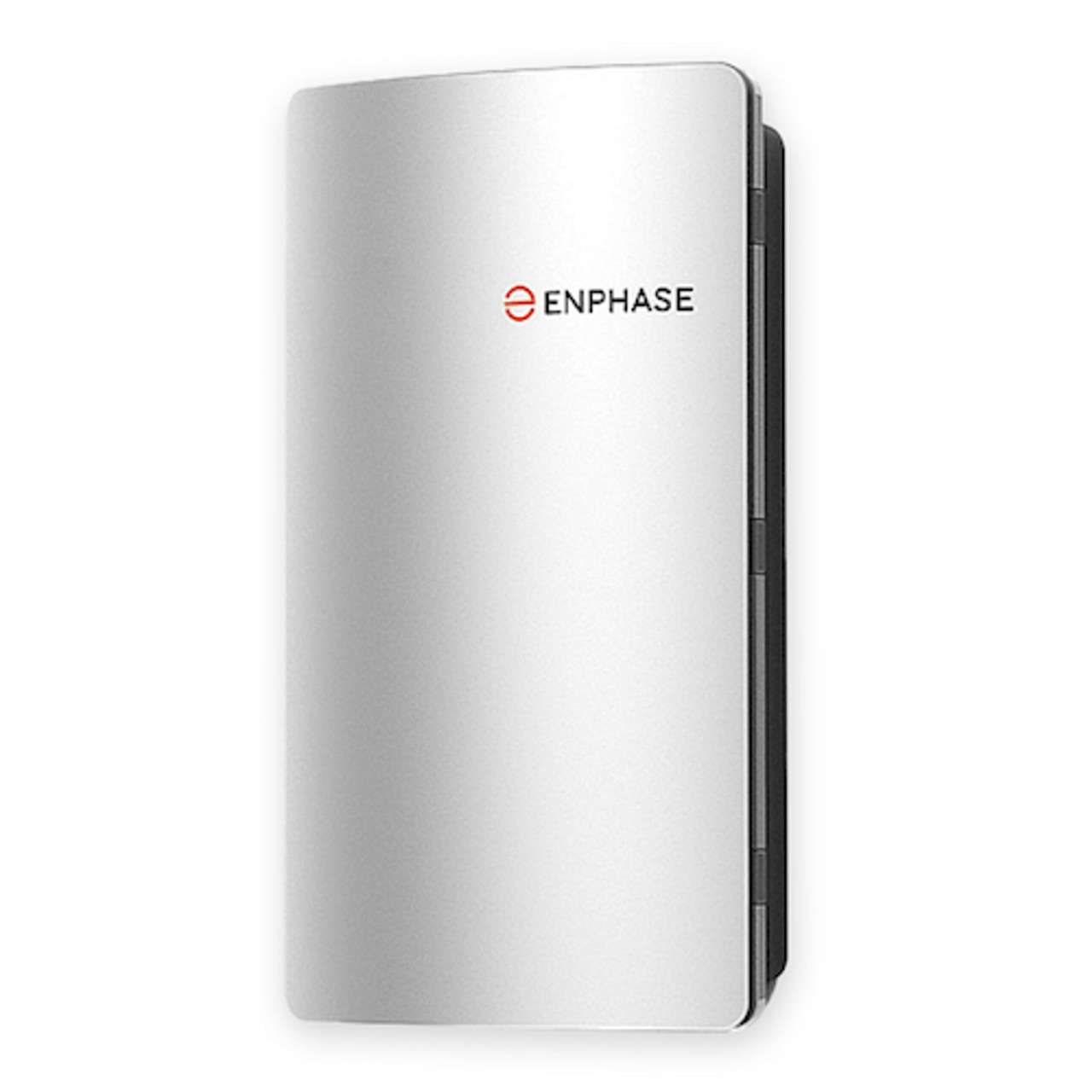

The Enphase Enpower smart switch EP200G101-M240US00 contains an automatic transfer switch – or a Microgrid Interconnect Device, to use the language of the NEC (to isolate from the grid when there is a grid failure) – rated at 200 amps, and a neutral forming transformer to allow for 120/240 VAC operation. The Enphase Enpower smart switch, part of the Enphase Ensemble solution, consolidates interconnection equipment into a single enclosure and streamlines grid-independent capabilities of PV and storage installations by providing a consistent, pre-wired solution for residential applications.
|
MANUFACTURER:
|
Enphase
|
|
MODEL NUMBER:
|
EP200G101-M240US00
|
|
INCLUDES:
|
Enphase Enpower smart switch with neutral-forming transformer, Microgrid Interconnect Device (MID), breakers, and screws. Streamlines grid-independent capabilities of PV and storage installations.
|
|
ELECTRICAL SPECIFICATIONS:
|
—————
|
|
ASSEMBLY RATING:
|
Continuous operation at 100% of its rating
|
|
SYSTEM VOLTAGE:
|
120/240 VAC, 60 Hz
|
|
MAXIMUM CONTINUOUS CURRENT RATING:
|
160 A
|
|
MAXIMUM OUTPUT OVERCURRENT PROTECTION DEVICE:
|
200 A
|
|
MAXIMUM INPUT OVERCURRENT PROTECTION DEVICE:
|
200A
|
|
MAXIMUM OVERCURRENT PROTECTION DEVICE RATING FOR STORAGE BRANCH CIRCUIT:
|
80A
|
|
MAXIMUM OVERCURRENT PROTECTION DEVICE RATING FOR PV COMBINER BRANCH CIRCUIT:
|
80A
|
|
NFT BREAKER RATING (PRE-INSTALLED):
|
40A between L1 and Neutral; 40A between L2 and Neutral
|
|
MECHANICAL DATA:
|
—————
|
|
DIMENSIONS (WXHXD):
|
50cm x 91.6cm x 24.6cm (19.7 in x 36 in x 9.7 in)
|
|
WEIGHT:
|
36 kg (80 lbs)
|
|
AMBIENT TEMPERATURE RANGE:
|
-40º C to +50º C (-40º to 122º F)
|
|
COOLING:
|
Natural convection, plus heat shield
|
|
ENCLOSURE ENVIRONMENTAL RATING:
|
Outdoor, NEMA type 3R, polycarbonate construction
|
|
ALTITUDE:
|
To 2500 meters (8200 feet)
|
|
COMPLIANCE:
|
This product will comply with all the required regulatory certifications in the North American markets before launch. Details will be provided in the final data sheet.
|
