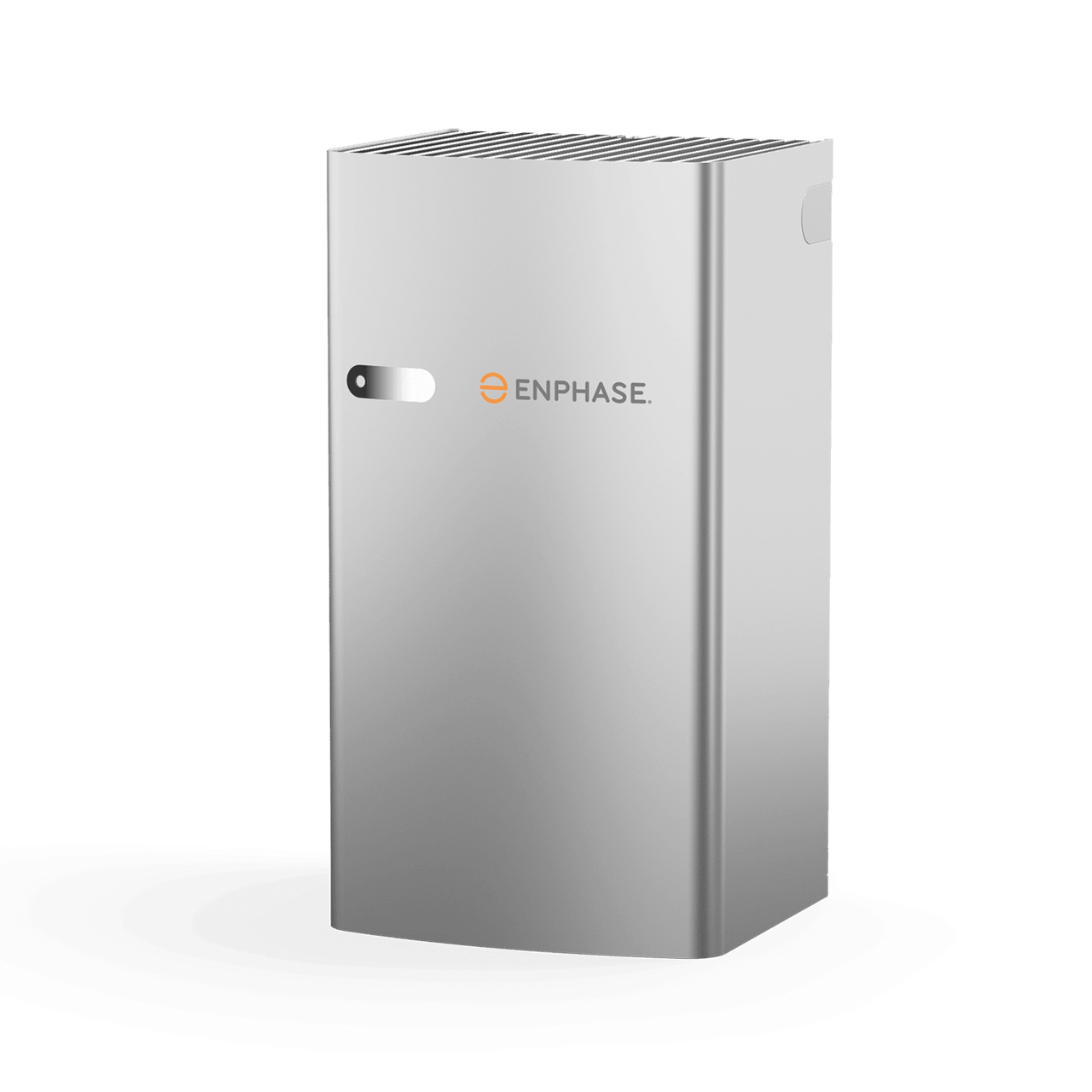

The Enphase Encharge 3T is an all-in-one AC-coupled 3.8 kWh battery storage system with integrated Enphase IQ8 Microinverters and BMU that is reliable, smart, and safe. As a fully integrated AC battery system, the Enphase Encharge 3 provides the lowest lifetime energy costs with backup capability for both new and retrofit solar customers. The Encharge 3T battery storage system includes proven high-reliability IQ8 Series Microinverters, one Encharge 3.8 kWh base unit (B03-A01-US00-1-3) and one Encharge 3T cover and mounting bracket (B03-C-0350-O). Monitor your Enphase Encharge system from anywhere with the mobile app. Limited Warranty: 70% capacity, up to 10 years or 4000 cycles.
|
MANUFACTURER:
|
Enphase
|
|
MODEL NUMBER:
|
ENCHARGE-3T-1P-NA
|
|
INCLUDES:
|
3.8 kWh base unit (B03-A01-US00-1-3); One Encharge 3 cover and mounting bracket (B03-C-0350-O)
|
|
OUTPUT (AC) @ 240 VAC:
|
OUTPUT (AC)
|
|
RATED (CONTINUOUS) OUTPUT POWER:
|
1.28 kVA
|
|
PEAK OUTPUT POWER:
|
1.92 kVA (10 seconds)
|
|
NOMINAL VOLTAGE / RANGE:
|
240/211—264 VAC
|
|
NOMINAL FREQUENCY / RANGE:
|
60/57—63 Hz
|
|
RATED OUTPUT CURRENT:
|
5.3 A
|
|
POWER FACTOR (ADJUSTABLE):
|
0.85 leading; 0.85 lagging
|
|
MAXIMUM UNITS PER 20 A BRANCH CIRCUIT:
|
Three units (single phase)
|
|
INTERCONNECTION:
|
Single phase
|
|
ROUND TRIP EFFICIENCY:
|
89%
|
|
BATTERY:
|
BATTERY
|
|
USABLE CAPACITY:
|
3.36 kWh
|
|
ROUND TRIP EFFICIENCY:
|
96%
|
|
MAXIMUM DC VOLTAGE:
|
73.5 V
|
|
CHEMISTRY:
|
Lithium iron phosphate (LFP)
|
|
MECHANICAL DATA:
|
MECHANICAL DATA
|
|
DIMENSIONS (WXHXD):
|
16.9 in x 30.5 in x 7.4 in
|
|
WEIGHT:
|
107.6 lbs
|
|
ENCLOSURE:
|
Outdoor – NEMA 3R
|
|
COOLING:
|
Natural convection – No fans
|
|
ALTITUDE:
|
Up to 8200 feet; 2500 meters
|
|
MOUNTING:
|
Wall mount
|
|
FEATURES AND COMPLIANCE:
|
FEATURES & COMPLIANCE
|
|
COMPATIBILITY:
|
Compatible with grid-tied PV systems. Compatible with Enphase IQ Series Micros, Enphase Enpower, and Enphase IQ Envoy for backup operation.
|
|
COMMUNICATION:
|
Wireless 2.4 GHz and 915 MHz
|
|
SERVICES:
|
Backup, self-consumption, TOU, Demand Charge, NEM Integrity
|
|
MONITORING:
|
Enlighten Manager and MyEnlighten monitoring options; API integration
|
|
COMPLIANCE:
|
This product will comply with all the required regulatory certifications in the North American markets before launch. Details will be provided in the final data sheet.
|
|
LIMITED WARRANTY:
|
>70% capacity, up to 10 years or 4000 cycles
|
